Operating voltage: 48Vdc
Communication interface: RS234, SR485, CAN
Dry contact port：4DI；6DO
Current-type temperature sensor input terminal：3
Highsystemmanagementcapabilities,cansetvarious parametersandfunctionsofthesystem.
TheinterfacelanguageisEnglishoptional.Theuser’s interfaceissimpleandeffective.
TheModemconfiguredwithGPRSfunctioncanrealize remotemonitoringthroughprovidingdatatothe
Internetserver

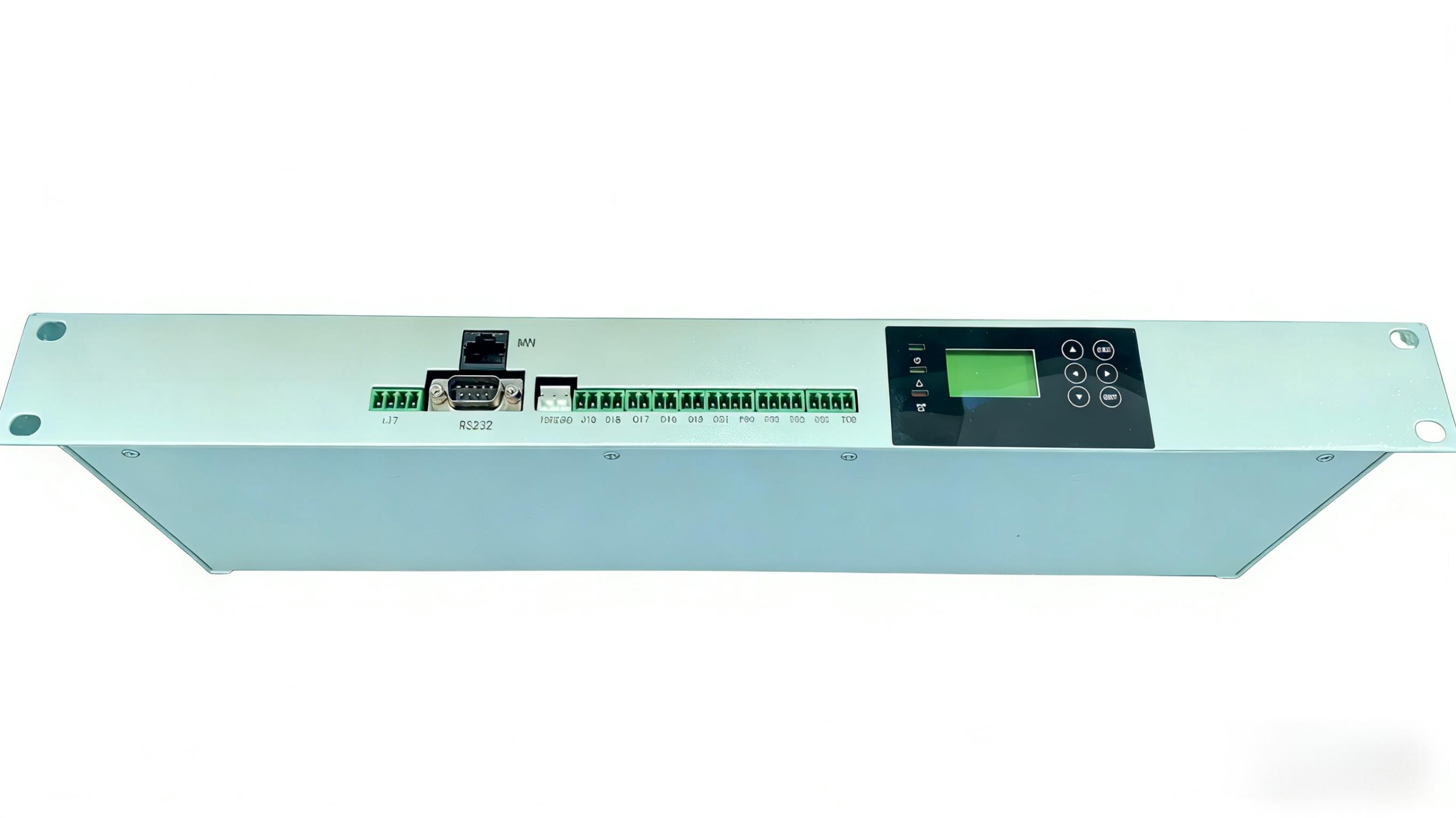

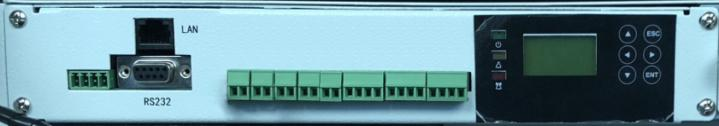

Front interface
Backside interface

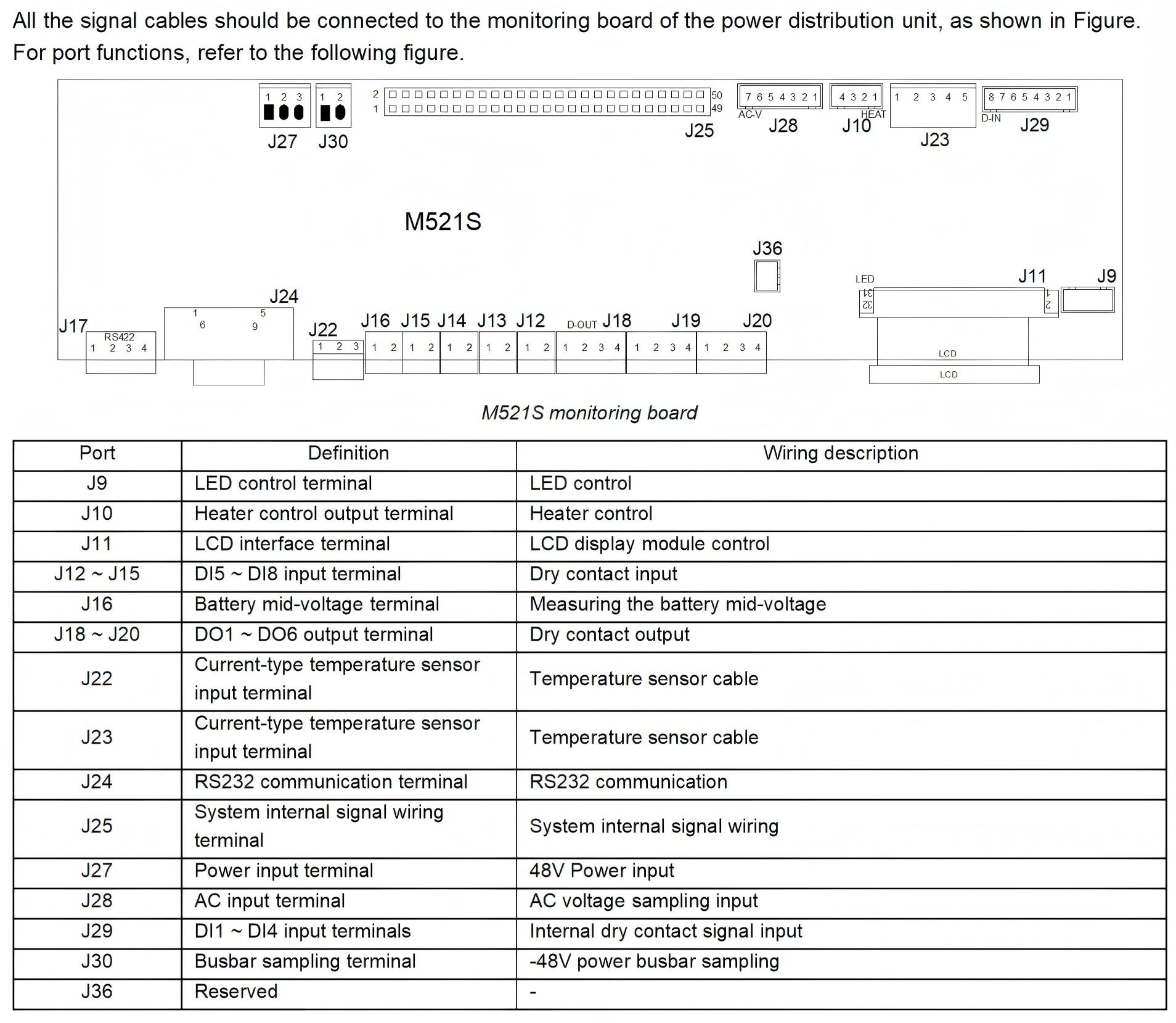

Ports

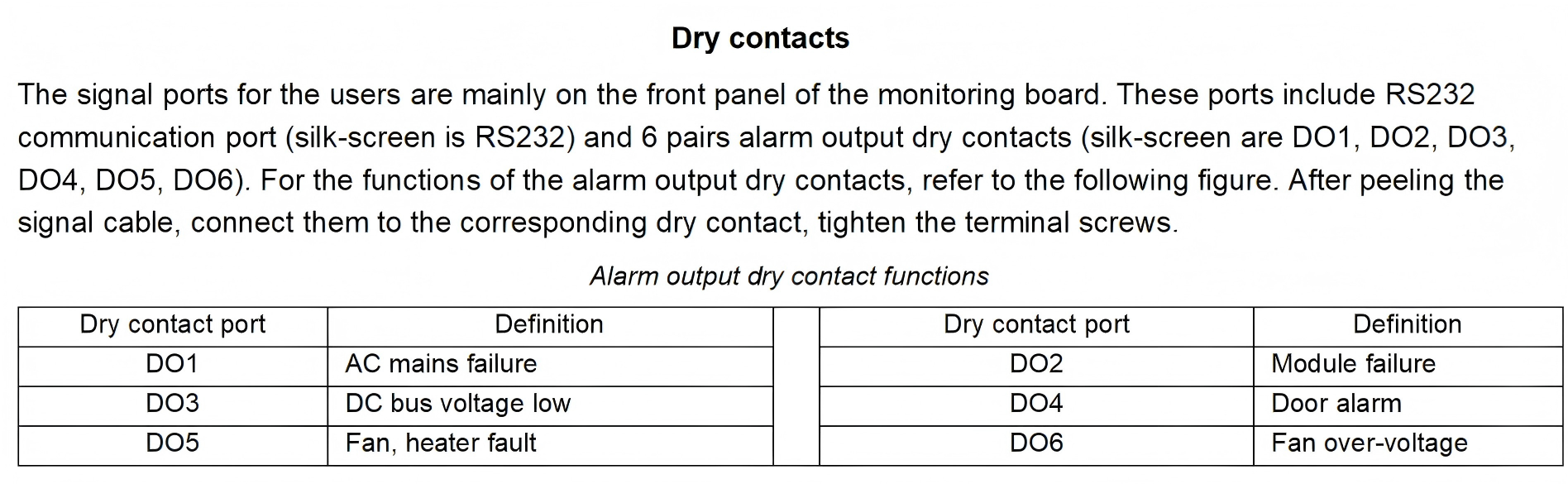

Ports

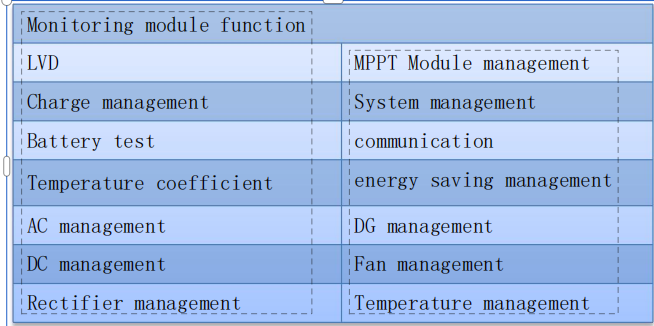

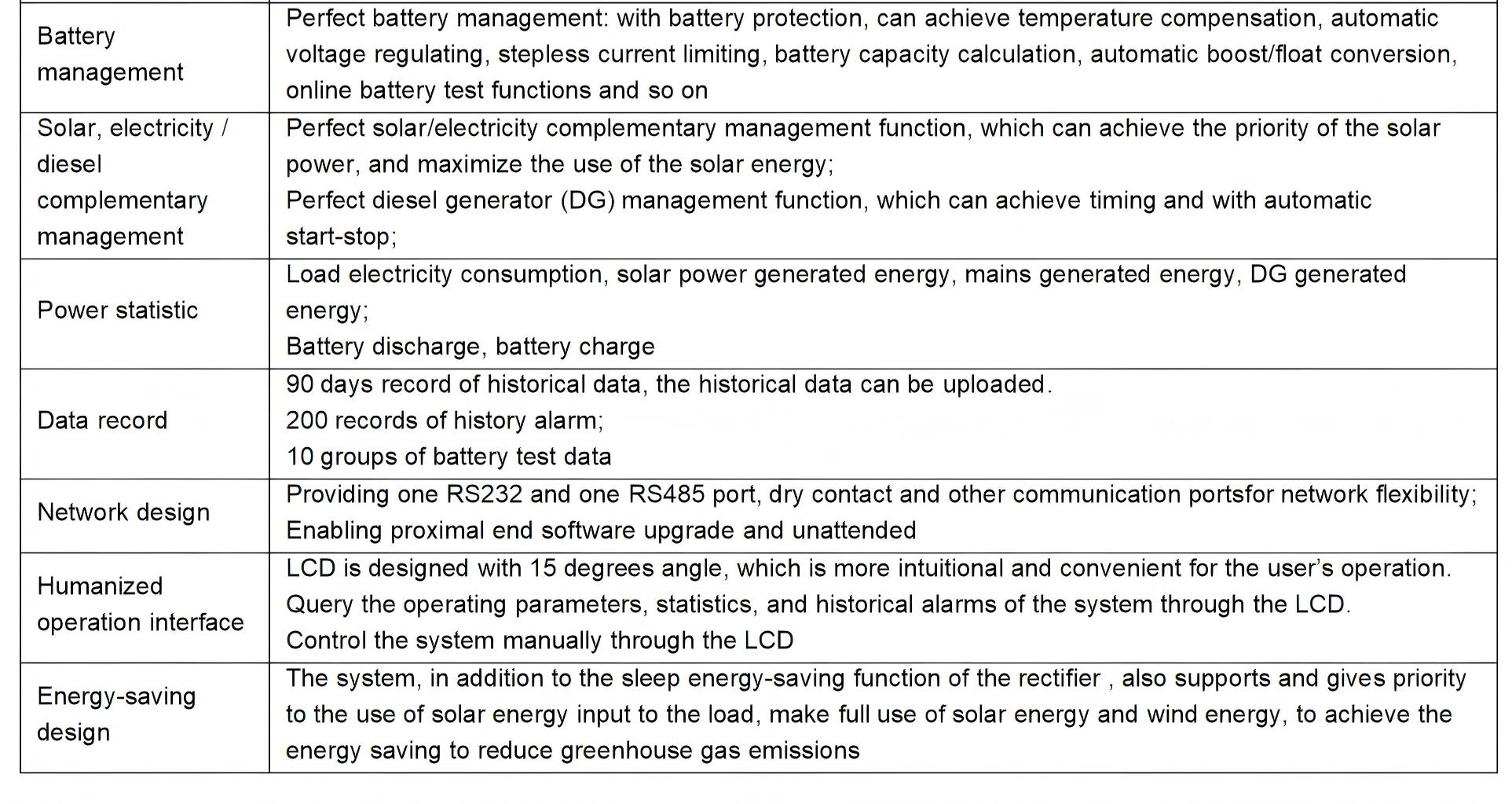

Features

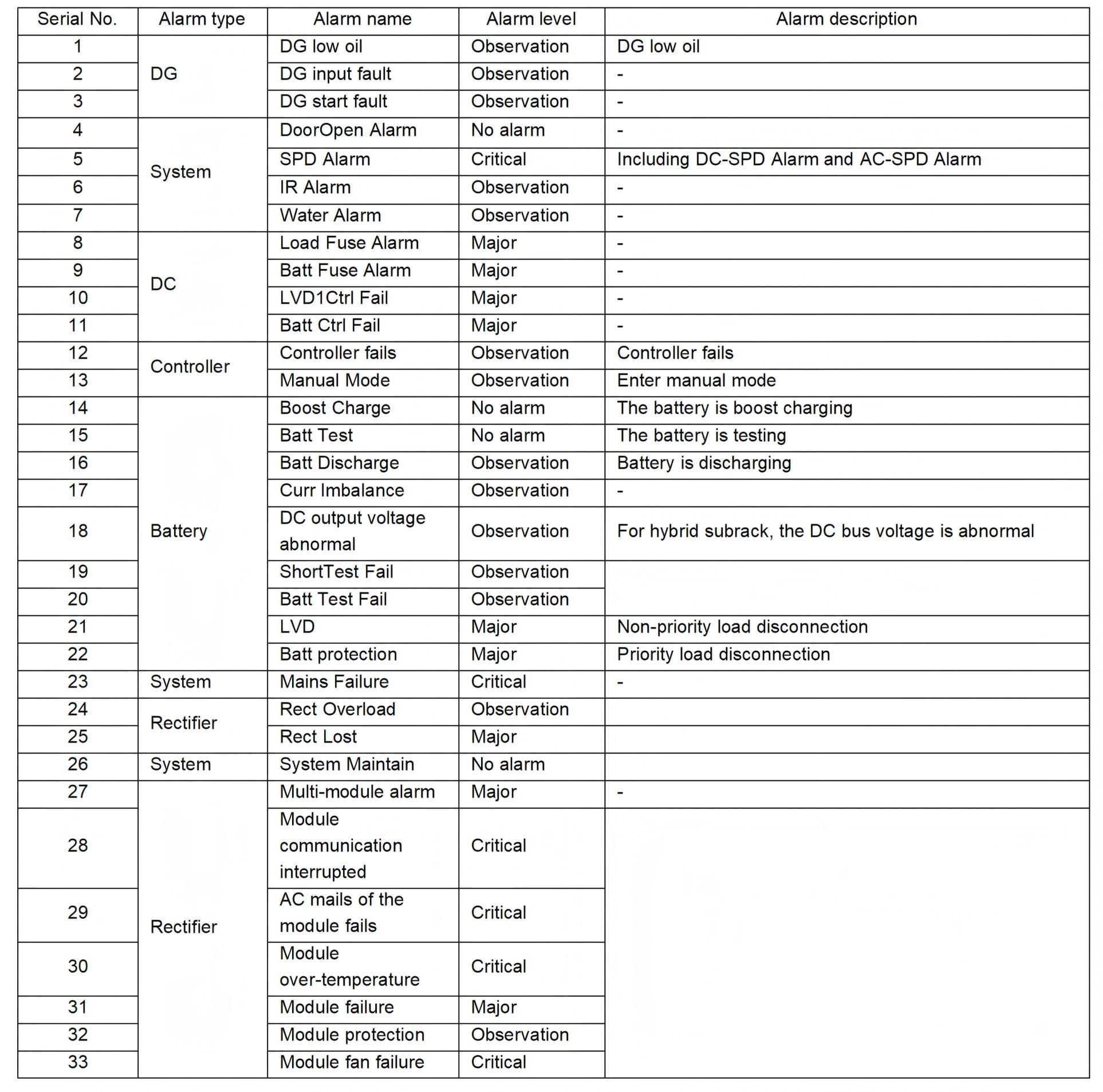

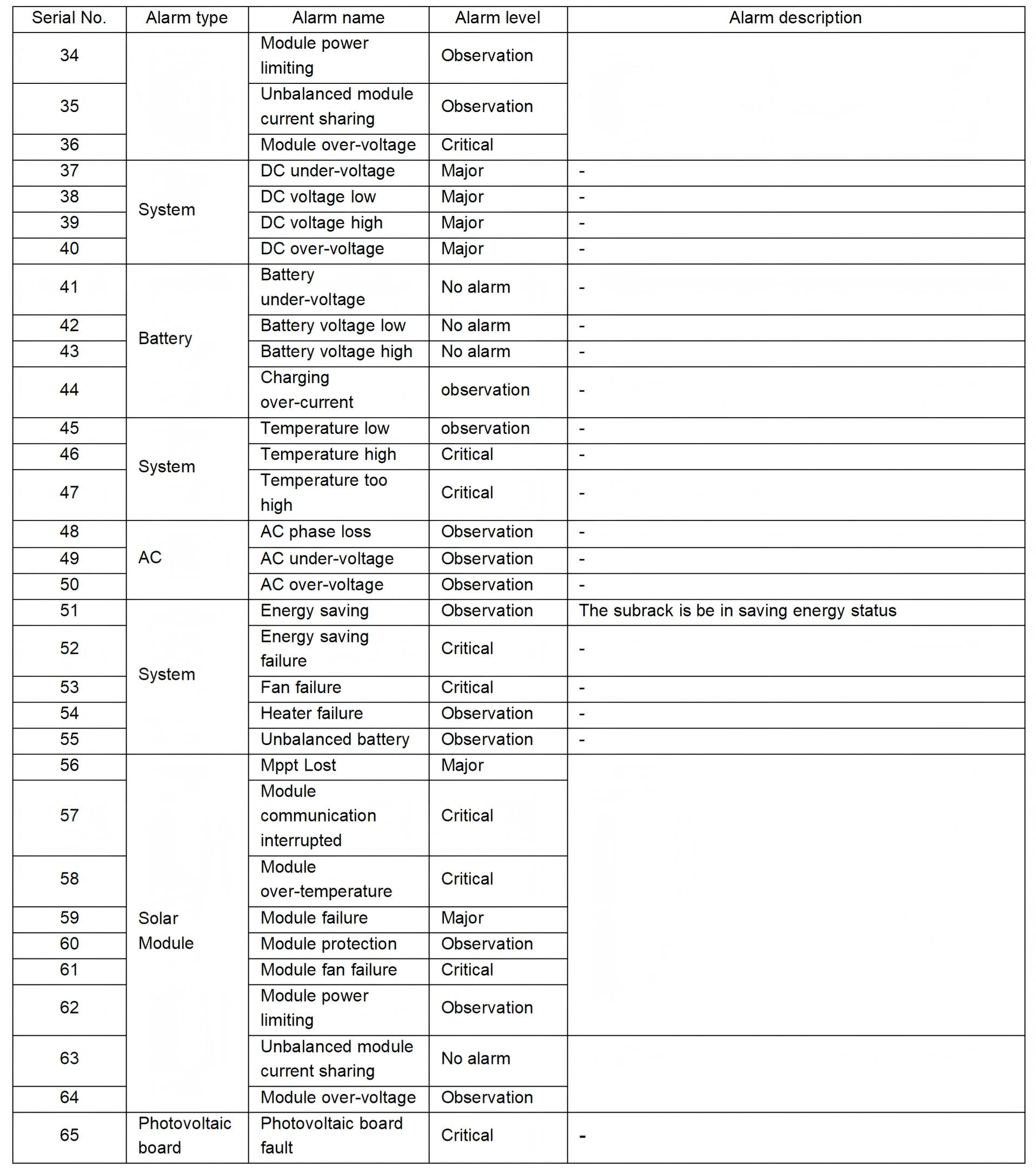

Controller alarms
