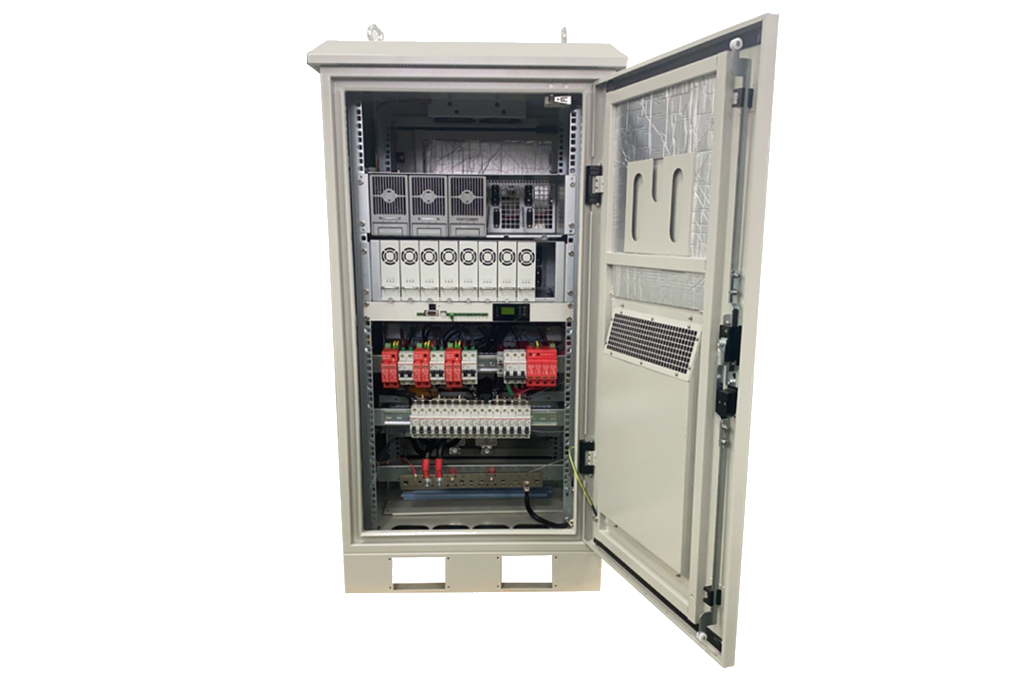

Product Snapshot ◆Size: 600*600*2000mm ◆Perfect fault protection and fault alarm functions ◆Perfect AC and DC side lightning protection design ◆The system uses rectifier sleep technology, dual steady state contactor, low-power shunt and fan speed adjustable technology, the system has more prominent energy-saving function ◆ Protection degree:IP55 ◆ Equipped with access control alarm switch and DC […]

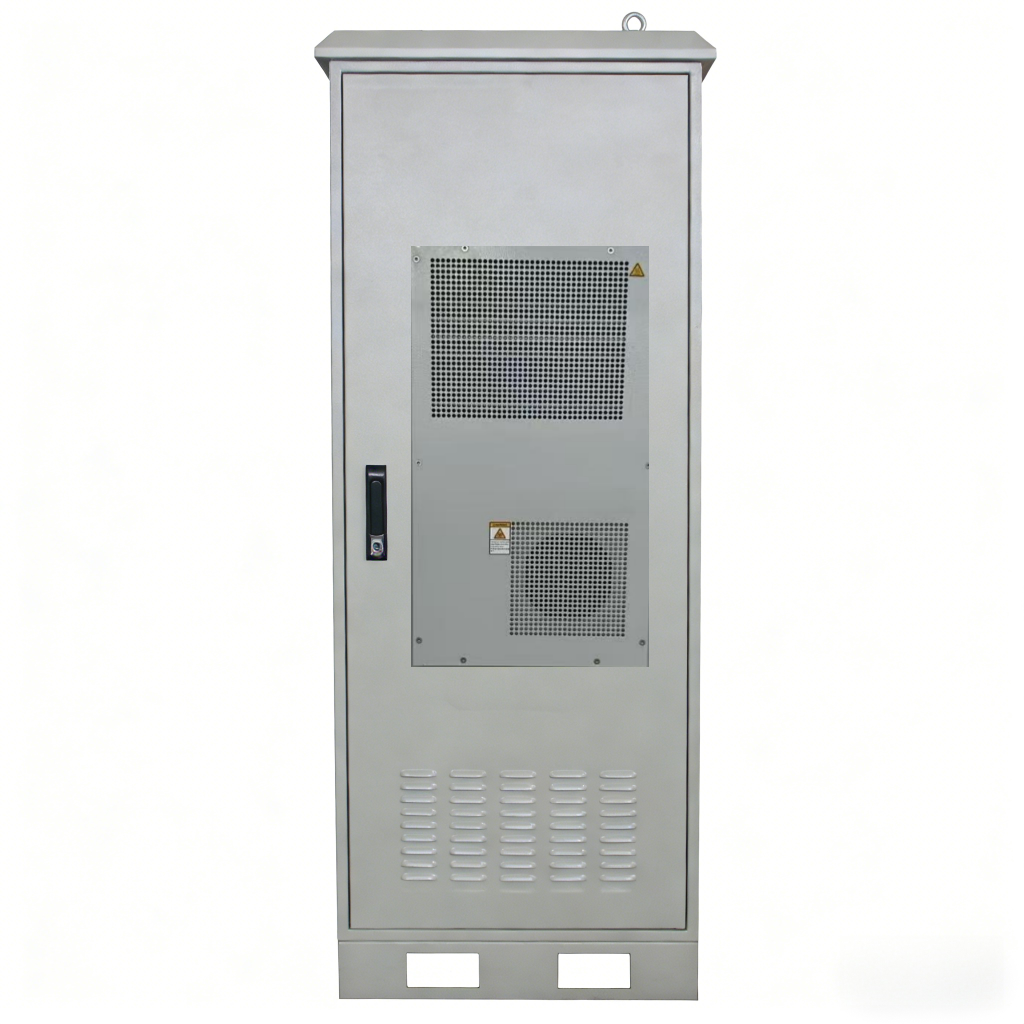

Product Snapshot ◆Size: 600*600*2000mm ◆Perfect fault protection and fault alarm functions ◆Perfect AC and DC side lightning protection design ◆The system uses rectifier sleep technology, dual steady state contactor, low-power shunt and fan speed adjustable technology, the system has more prominent energy-saving function ◆ Protection degree:IP55 ◆ Equipped with access control alarm switch and ACair

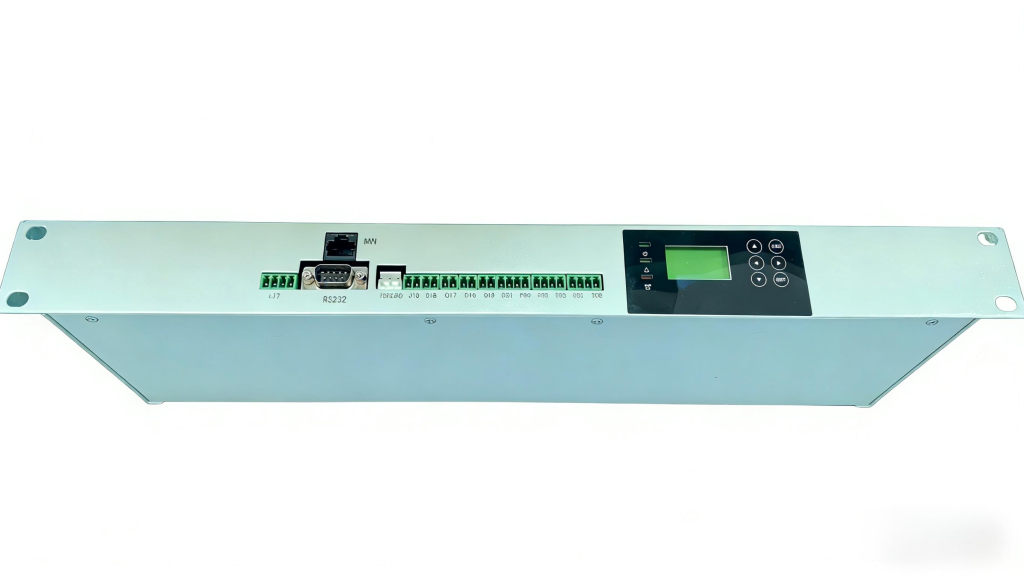

Operating voltage: 48Vdc Communication interface: RS234, SR485, CAN Dry contact port：4DI；6DO Current-type temperature sensor input terminal：3 Highsystemmanagementcapabilities,cansetvarious parametersandfunctionsofthesystem. TheinterfacelanguageisEnglishoptional.Theuser’s interfaceissimpleandeffective. TheModemconfiguredwithGPRSfunctioncanrealize remotemonitoringthroughprovidingdatatothe Internetserver Front interface Backside interface Ports Ports Features Controller alarms

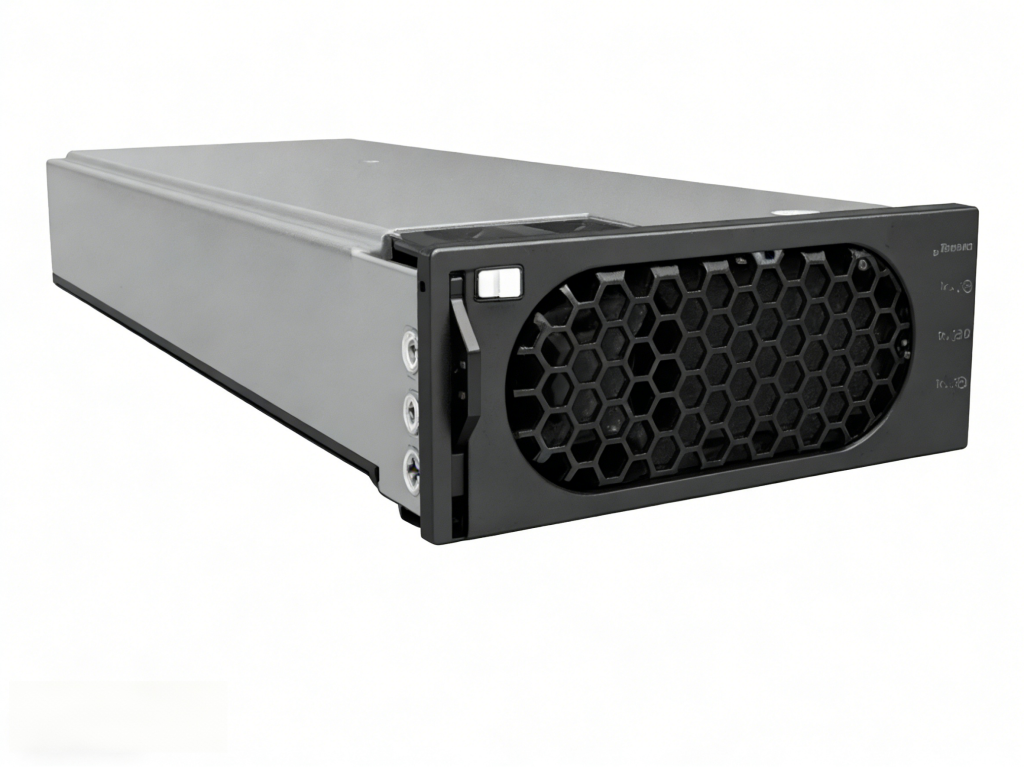

◆Highefficiency>95%. ◆Therectifieradoptshotpluggingtechnology.Inalivepowersupplysystem,plugginginorout therectifierwillnotgeneratesparks,ordamagetheterminals. ◆The rectifier uses advanced digital active load-sharing technology, and the imbalance degree of the load-sharing is less than 3%. ◆Through the external controller, the output voltage of the rectifier can be adjusted between 42V and 58.5V, and the adjustment accuracy is ±0.1V. ◆When the internal temperature exceeds 65°C owing to the reasons

◆Highefficiency>98.2% ◆The solar module can track the maximum power point of photovoltaic batteries, and the maximum power point tracking accuracy is more than 99.5%. ◆The solar module adopts hot plugging technology. In a live power supply system, plugging in or plugging out the solar module will not generate sparks, or damage the terminals. It takes

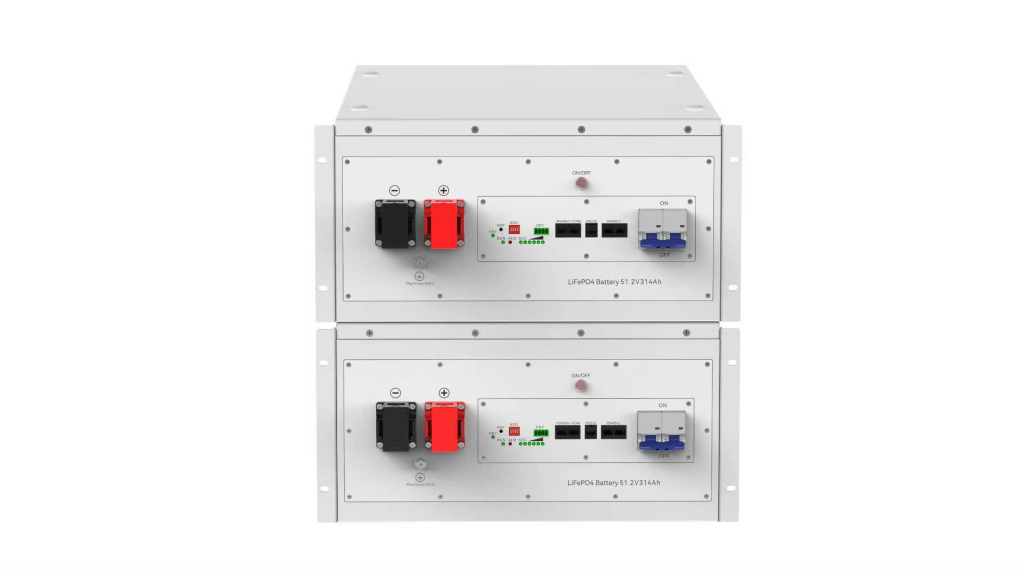

Battery specifications

Solar panel specifications

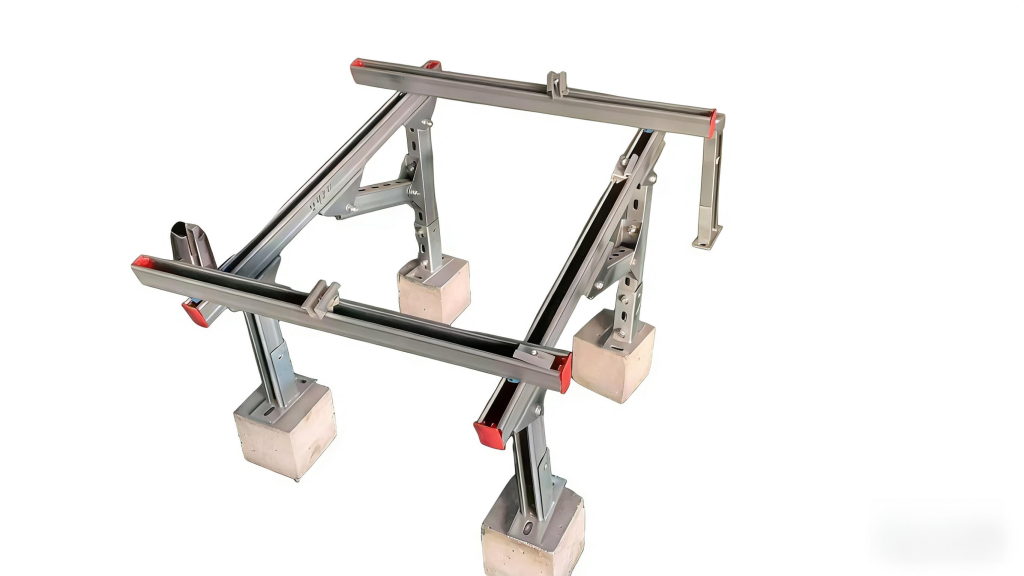

Product Snapshot ◆wind resistance level 24.5 ~ 28.4 m/s ◆The rack tilt angle and orientation should be determined based on the specific location of the city. ◆Structure material:Zinc-aluminum- Magnesium steel.Bolt material:Galvanized carbon steel

Product Specifications:
