Base station light oil system solution
In remote areas without access to mains electricity，The base station power supply typically utilizes diesel generators for electricity generation，The
voltage is then converted to 48V by the rectifier module to power the communication load，(such as：Our country Xizang、Yunnan、The high
mountains in provinces such as Inner Mongolia、gobi、grasslands border region，as well as the Middle East overseas、Africa Most of Southeast
Asia Base station in off-grid area；)
Standard Finish
As soon as cnc manufacturing process is complete, it will produce a machined finish or you can say “standard finish”, and the part will have some visible machining marks and the surface roughness is around Ra1.6-3.2 μm. Their roughness and lack of protective coating renders them susceptible to nicking, scuffing, or scratching.

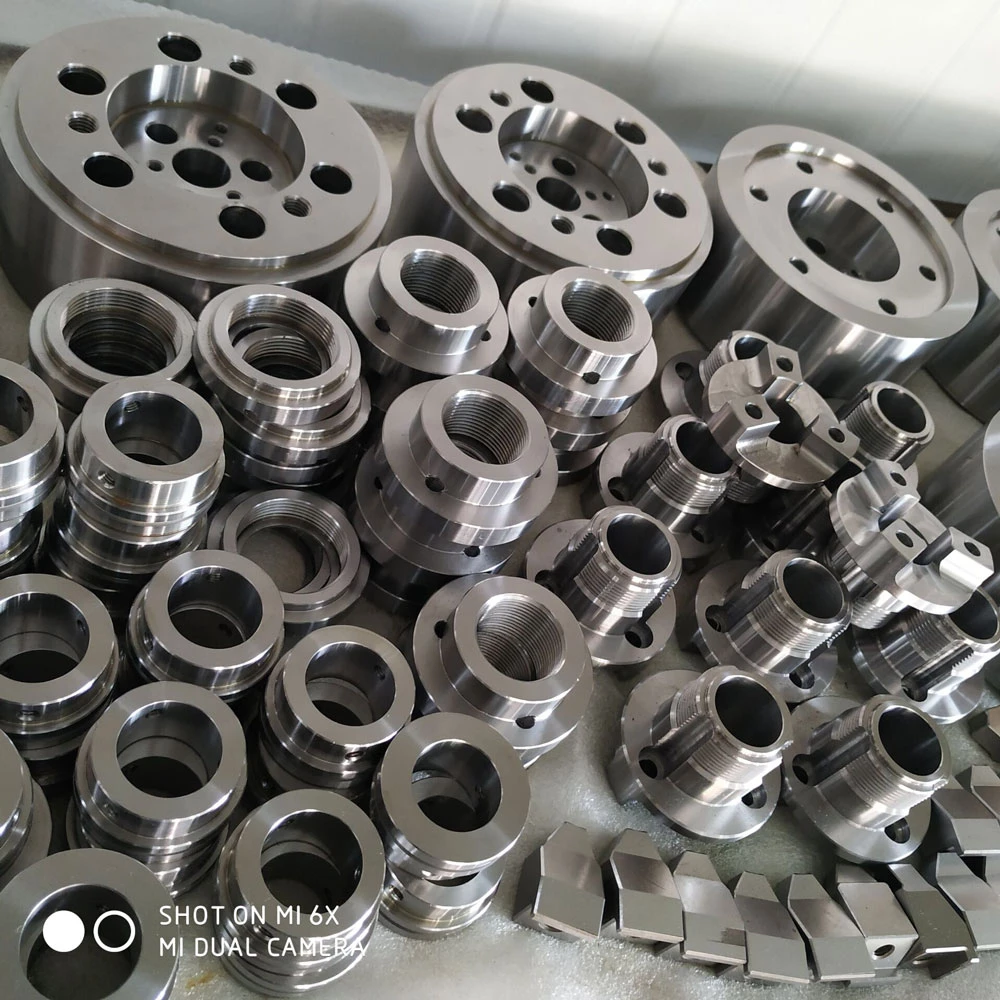

Machined finish

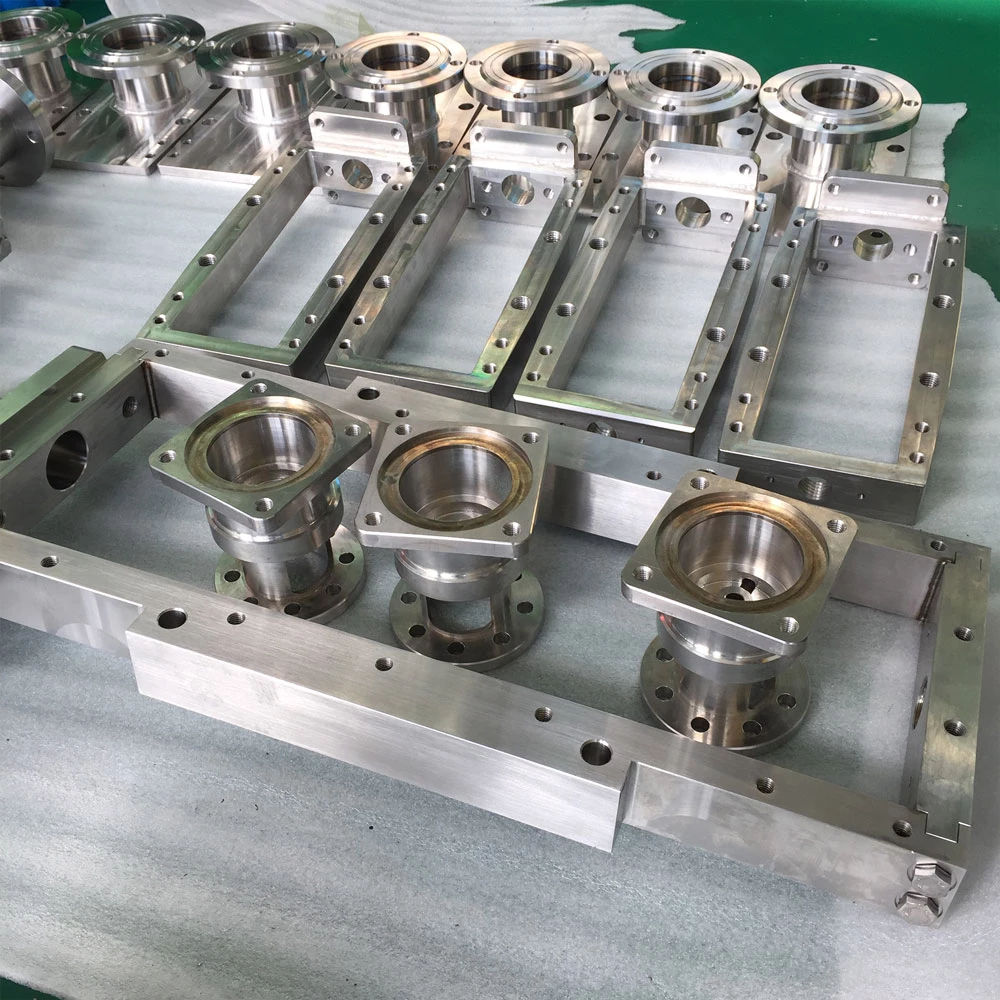

Machined finish

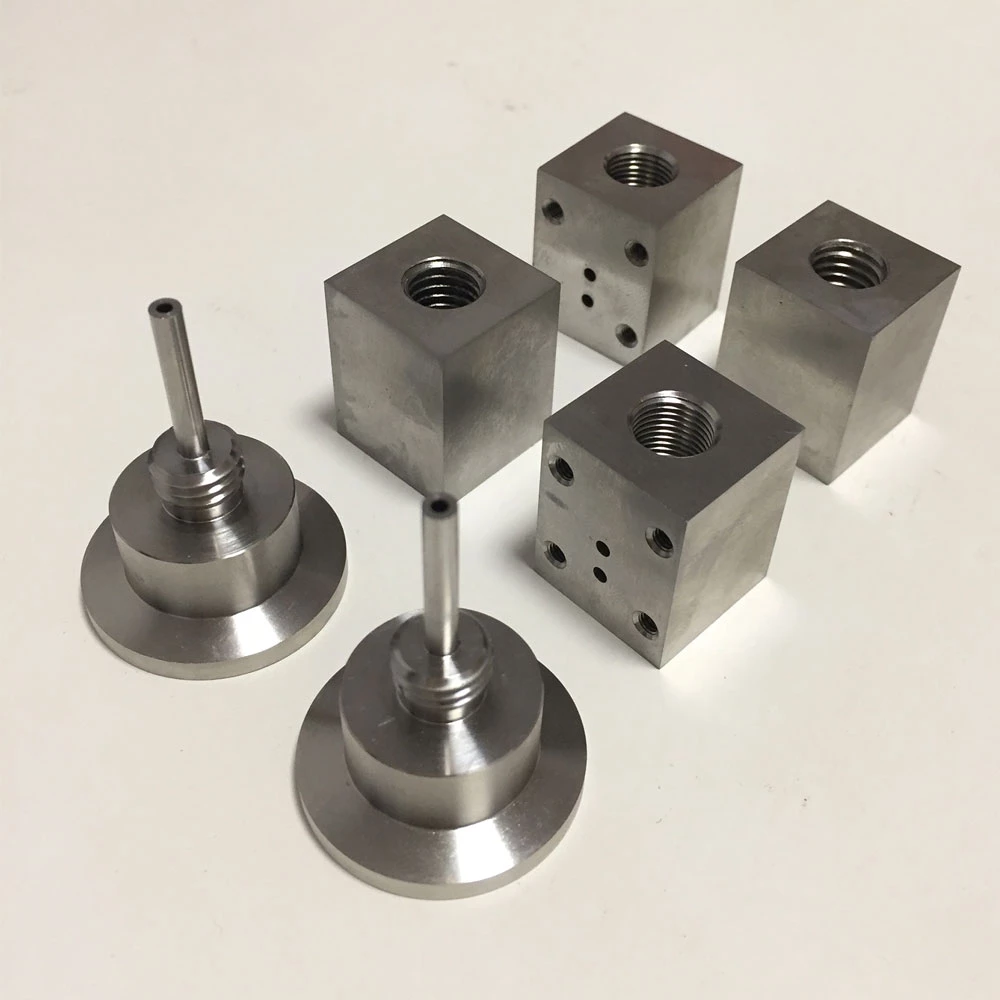

Machined finish
The Pain Point of Oil Engine Power Supply System：
The oil used is expensive. and vulnerable to theft；
Regular oil delivery is required during operation high transportation cost Oil is not easy to store；it causes great environmental
pollution，generates a lot of noise and emits a lot of carbon dioxide; the system works for a long time short generator life high
operating cost；
The electricity generated by the oil generator must still be converted into direct current (DC) through a rectifier power supply before it
can be utilized， wasting energy。

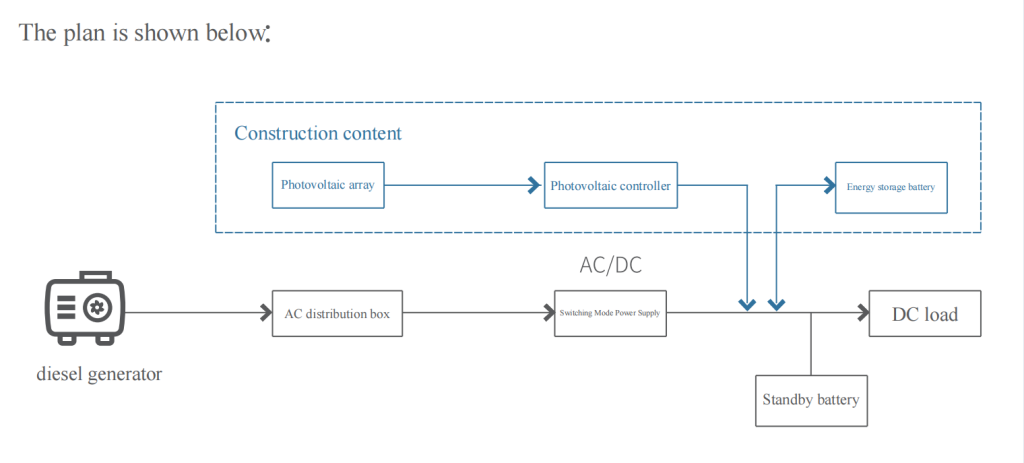

Introduction to the Light-Optimized Oil Solution
Based on the original power supply system，Increase the number of photovoltaic and energy storage systems；
The photovoltaic system consists of photovoltaic modules、A special controller for A-PON base station、lithium cell、DC-
DC module configuration (configuration should be customized according to actual application scenarios)；
The system operates by prioritizing solar power generation during daylight hours while simultaneously charging the
energy storage battery，Switch to energy storage battery power supply when no solar PV is available at night，When the
battery is discharged to a specified depth Restart the diesel generator as a backup。
Applicable scenarios for the light oil solution
long sunshine duration，Annual sunshine duration>1000 hours；
There is sufficient space to install solar panels and related equipment，No trees around
houses The blocking of the chimney；
No extreme or harsh environment，Like a typhoon、strong sandstorm、High altitude
(above 5000 meters)。
