Product Display:
48V PV Communication Base Station Dedicated MPPT Controller
Product Introduction:
1. Maximum power point tracking accuracy over 99%, conversion efficiency up to 97%; 2. Can start with photovoltaic power supply and operate directly with load without a battery; 3. Wide PV input voltage range: 65~200VDC; 4. Supports parallel operation of multiple units to meet future system expansion with solar modules; 5. Supports human-machine interaction with parameter setting and data display functions; 6. Standard rack-mounted design, supports multiple PV inputs (supports 2 or 4 PV inputs); 7. Output voltage stabilization with self-stabilizing function; 8. Can accumulate and record PV power generation; 9. Multiple protections: lightning protection, anti-reverse flow, surge protection, reverse connection protection, etc.; 10. Uses standard Modbus protocol and RS485 communication, supports secondary integration development, and customizable dry contact functions; 11. Supports Bluetooth, WiFi, and 4G remote monitoring.

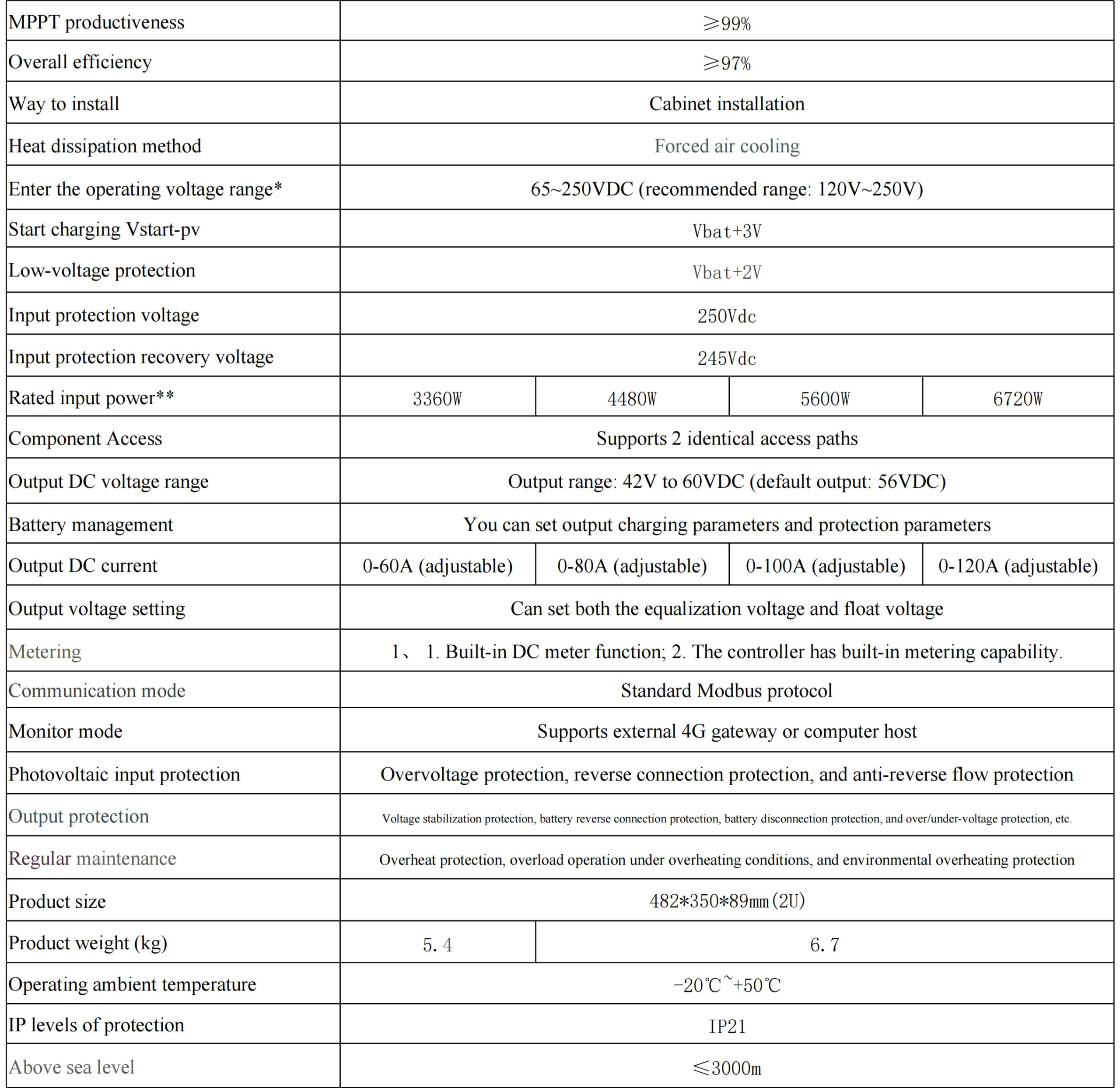

Technical Specifications:
